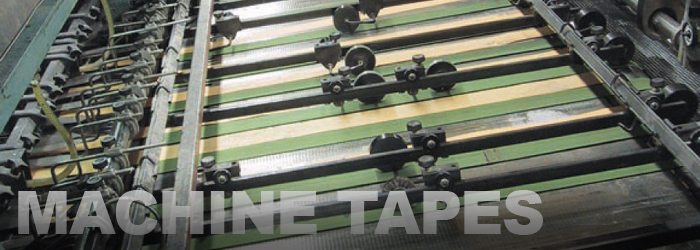

Machine Tapes
Applications:
Sheeters
Stackers
Printing Presses
Letter Sorting
Cross Cutters
Inserters
Ruling Machines
Book Binding Equipment
Envelope Machines, etc.
Product Features:
Superior splicing technology allows belts to perform very reliable and trouble free
A carefully designed and balanced product assortment allows you to apply the right machine tape for even the most challenging applications.
High friction rubber covers provide aggressive grabbing power for accurate paper processing
Abrasion resistant elastomers lead to long tape life
Rubber formulas provide printing solution, oil and chemical resistance
Special surface structures reduce ink transfer and result in maximum performance under normal and adverse running conditions
High Strength, yet very flexible nylon cores make tapes dimensionally stable and allow fro very small pulley diameters
Belts can be ordered endless to your size specifications, or can be purchased in cut pieces or roll form
Cat No
Overall Thickness (inches)
Tensile Force 1% elongation lbs/in
Admissible Tensile force lbs/in
Min. Pulley Diameter (inches)
Max Width (inches)
Temp Min (F)
Temp Max (F)
08 GP
0.05
10.3
26
0.8
31.5
-4
176
Quote
10 GP
0.06
25.7
64
1
31.5
-4
176
Quote
20 GP
0.07
57.1
143
2
31.5
-4
176
Quote
10SX/PP
0.06
25.7
64
1
31.5
-4
176
Quote
20SX/PP
0.09
57.1
143
2
31.5
-4
176
Quote
06 GU
0.02
6.9
18
0.6
31.5
-4
176
Quote
08 GU
0.03
10.3
26
0.8
31.5
-4
176
Quote
10/GU
0.04
25.7
64
1
31.5
-4
176
Quote
Soft UF
0.05
17.1
43
0.8
31.5
-4
176
Quote
06SoftDG
0.04
6.9
18
0.6
31.5
-4
176
Quote
08SoftDG
0.04
13.1
33
0.8
31.5
-4
176
Quote
06 NT/W
0.04
6.9
18
0.6
31.5
-4
176
Quote
06NN/W
0.06
6.9
18
0.8
31.5
-4
176
Quote
08NN/W
0.07
10.3
25
1
31.5
-4
176
Quote
10NN/W
0.09
26
65
1.5
31.5
-4
176
Quote
